NetCpp: AbstractSocket Class Reference

All Classes Namespaces Files Functions Variables Typedefs Enumerations Macros Pages

Base abstract class for protocols. More...

#include <abstract_socket.hpp>

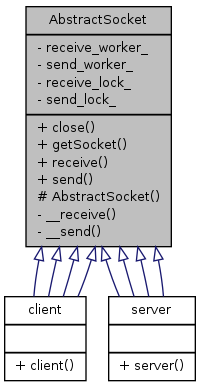

Inheritance diagram for AbstractSocket:

Public Member Functions
bool	close ()
	Close the socket.
AbstractSystemSocket *	getSocket ()
	get the socket
int	receive (__buffer buf, std::size_t size)
	Receive operation.
int	send (__buffer buf, std::size_t size)
	Send operation.

Protected Member Functions
	AbstractSocket (const protocol &prot)
	Constructor.

Private Member Functions
int	__receive (void *buffer, size_t size)
	Low-level receive.
int	__send (const void *buffer, size_t size)
	Low-level send.

Private Attributes
std::unique_ptr< std::thread >	receive_worker_
	Thread for asynchronous receive operations.
std::unique_ptr< std::thread >	send_worker_
	Thread for asynchronous send operations.
std::mutex	receive_lock_
	Mutex for synchronization with asynchronous receive operations.
std::mutex	send_lock_
	Mutex for synchronization with asynchronous send operations.

Detailed Description

Base abstract class for protocols.

This is the base abstract class for protocols. Any supported protocol must inherit from this class.

Definition at line 76 of file abstract_socket.hpp.

Constructor & Destructor Documentation

AbstractSocket ( const protocol & prot )

inlineprotected

Constructor.

Constructor is protected because only derived classes can construct this class. The object is constructed through net::createSocket(), which creates a platform-dependent socket.

Parameters

the	protocol type

Definition at line 118 of file abstract_socket.hpp.

socket_{createSocket(prot)} {}

Here is the call graph for this function:

Member Function Documentation

int __receive	(	void *	buffer,
		size_t	size
	)

private

Low-level receive.

This method is private because it is meant to be used through the other receive() method. Note: it can block the caller, because it continues receiving until the given number of bytes have been received.

Parameters

buffer	Pointer to the buffer where received bytes must be stored
size	Number of bytes to be received

Exceptions

runtime_error if the read() returns an error

Returns: The number of actually received bytes or -1 in case of error

Definition at line 118 of file abstract_socket.cpp.

{
        size_t remaining = size;
        while (remaining > 0) {
                ssize_t ret = socket_->read (((char*)buffer)+(size-remaining),
                    remaining);
                if (ret == 0){
                        // End of file reached
                        DEBUG("End of file reached");
                        break;
                } else if (ret < 0) {
                        ERROR("Receive error");
                        throw std::runtime_error ("Receive error");
                        return -1;
                }
                remaining -= ret;
        }
        return (size-remaining);
}

Here is the caller graph for this function:

int __send	(	const void *	buffer,
		size_t	size
	)

private

Low-level send.

This method is private because it is meant to be used through the other send() method. Note: it can block the caller, because it continues writing until the given number of bytes have been written.

Parameters

buffer	Pointer to the buffer containing bytes to be written
size	Number of bytes to be written

Exceptions

runtime_error if the write() returns 0 or an error

Returns: The number of actually written bytes or -1 in case of error

Definition at line 152 of file abstract_socket.cpp.

{
        size_t remaining = size;
        while (remaining > 0) {
                ssize_t ret = socket_->write (((char*)buffer)+(size-remaining), remaining);
                if (ret == 0){
                        DEBUG("Cannot send any further");
                        // Cannot send more
                        break;
                } else if (ret < 0) {
                        ERROR("Send error");
                        throw std::runtime_error ("Send error");
                        return -1;
                }
                remaining -= ret;
        }
        return (size-remaining);
}

Here is the caller graph for this function:

bool close ( )

inline

Close the socket.

Method to close the socket. Currently, there is no mechanism to re-open a closed socket.

Returns: true in case of success; false otherwise

Definition at line 87 of file abstract_socket.hpp.

        {
                return socket_->close();
        }

AbstractSystemSocket* getSocket ( )

inline

get the socket

This method is used to let derived classes of AbstractSocket invoke specific protocol-dependent functions (e.g., accept()).

Returns: the socket used by this instance of the class

Definition at line 100 of file abstract_socket.hpp.

        {
                return socket_.get();
        }

int receive	(	__buffer	buf,
		std::size_t	size
	)

Receive operation.

This function sendsendsensendsendsendcare of synchronization with any other asynchronous operations. Note: it can block the caller, because it calls __receive() which continues receiving until the given number of bytes have been received.

Parameters

buf	Pointer where received data must be put
size	Size of data to be received

Returns: Number of bytes actually received

Exceptions

runtime_error in case of too small buffer

Example of usage: std::array<char, 5> buf; AbstractSocket::receive(net::buffer(b), 3);

Definition at line 51 of file abstract_socket.cpp.

{
        int ret;
        if (buf.size_ == 0 || size > buf.size_){
                ERROR("Wrong buffer size!");
                throw std::runtime_error ("Wrong buffer size");
        }
        receive_lock_.lock();
        try {
                ret = __receive(buf.ptr_, size);
        } catch (...) {
                ERROR("Receive error!");
        }

        receive_lock_.unlock();
        return ret;
}

Here is the call graph for this function:

int send	(	__buffer	buf,
		std::size_t	size
	)

Send operation.

This function sends data to the socket taking care of synchronization with any other asynchronous operations. Note: it can block the caller, because it calls __send() which continues writing until the given number of bytes have been written.

Parameters

buf	Pointer to data to be written
size	Size of data to be written

Returns: Number of bytes actually written

Exceptions

runtime_error in case of too small buffer

Example of usage: std::array<char, 5> buf; AbstractSocket::send(net::buffer(b), 3);

Definition at line 87 of file abstract_socket.cpp.

{
        int ret;
        if (buf.size_ == 0 || size > buf.size_){
                ERROR("Wrong buffer size!");
                throw std::runtime_error ("Wrong buffer size");
        }
        send_lock_.lock();
        try {
                ret = __send(buf.ptr_, size);
        } catch (...) {
                ERROR("Send error!");
        }

        send_lock_.unlock();
        return ret;
}

Here is the call graph for this function:

Member Data Documentation

std::mutex receive_lock_

private

Mutex for synchronization with asynchronous receive operations.

Definition at line 147 of file abstract_socket.hpp.

std::unique_ptr<std::thread> receive_worker_

private

Thread for asynchronous receive operations.

Definition at line 137 of file abstract_socket.hpp.

std::mutex send_lock_

private

Mutex for synchronization with asynchronous send operations.

Definition at line 152 of file abstract_socket.hpp.

std::unique_ptr<std::thread> send_worker_

private

Thread for asynchronous send operations.

Definition at line 142 of file abstract_socket.hpp.

The documentation for this class was generated from the following files:

/home/cloud/work/netcpp.doc/include/abstract_socket.hpp
/home/cloud/work/netcpp.doc/src/abstract_socket.cpp
