NetCpp: AbstractSystemSocket Class Reference

All Classes Namespaces Files Functions Variables Typedefs Enumerations Macros Pages

Virtual class for platform-dependent code. More...

#include <abstract_system_socket.hpp>

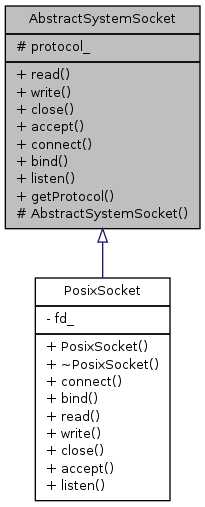

Inheritance diagram for AbstractSystemSocket:

Public Member Functions
virtual int	read (void *buf, size_t size)=0
	Method to read data from the socket.
virtual int	write (const void *buf, size_t size)=0
	Method to write data to the socket.
virtual bool	close ()=0
	Method to close the socket.
virtual void	accept (AbstractSystemSocket *sock)=0
	Method to accept a connection on a socket.
virtual void	connect (const Address &addr)=0
	Method to connect the socket to an address.
virtual void	bind (const Address &addr)=0
	Method to bind the socket to an address.
virtual void	listen (int max_pending_connections)=0
	Method to set the maximum number of pending connections.
protocol	getProtocol () const
	Method to get the socket protocol.

Protected Member Functions
	AbstractSystemSocket (const protocol &prot)
	Constructor.

Protected Attributes
protocol	protocol_
	Protocol used by the socket.

Detailed Description

Virtual class for platform-dependent code.

This is the virtual class which every platform-dependent implementation must inherit from. The class offers a set of primitives which must be implemented by the concrete derived classes.

Definition at line 47 of file abstract_system_socket.hpp.

Constructor & Destructor Documentation

AbstractSystemSocket ( const protocol & prot )

inlineprotected

Constructor.

The constructor is protected because only derived classes can use it.

Parameters

prot	Protocol used by the socket

Definition at line 130 of file abstract_system_socket.hpp.

protocol_{prot}{};

Member Function Documentation

virtual void accept ( AbstractSystemSocket * sock )

pure virtual

Method to accept a connection on a socket.

Parameters

sock	Pointer to the socket on which the new connection must be accepted.

Exceptions

runtime_error in case of error

Implemented in PosixSocket.

virtual void bind ( const Address & addr )

pure virtual

Method to bind the socket to an address.

Parameters

addr	Address which the socket must be bound to

Exceptions

runtime_error in case of error

Implemented in PosixSocket.

virtual bool close ( )

pure virtual

Method to close the socket.

Note: currently there is no mechanism to re-open a closed socket.

Returns: true in case of success; false otherwise

Implemented in PosixSocket.

virtual void connect ( const Address & addr )

pure virtual

Method to connect the socket to an address.

Parameters

addr	Address which the socket must be connected to

Exceptions

runtime_error in case of error

Implemented in PosixSocket.

protocol getProtocol ( ) const

inline

Method to get the socket protocol.

This method returns the protocol, which has been set at socket creation (and cannot be changed).

Returns: Protocol used by the socket

Definition at line 118 of file abstract_system_socket.hpp.

                                     {
                return protocol_;
        }

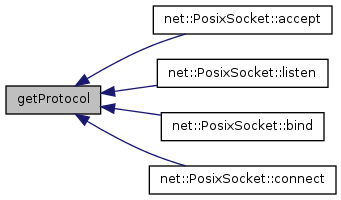

Here is the caller graph for this function:

virtual void listen ( int max_pending_connections )

pure virtual

Method to set the maximum number of pending connections.

This method allows to set the maximum number of pending connections for stream (e.g., TCP) communications.

Parameters

max_pending_connections Maximum number of pending connections

Exceptions

runtime_error in case of error or non-streamed communication

Implemented in PosixSocket.

virtual int read	(	void *	buf,
		size_t	size
	)

pure virtual

Method to read data from the socket.

The buffer is filled with the read data.

Parameters

p	buf Pointer to the memory address containing data
size	Number of bytes that must be read

Returns: the number of bytes actually read; < 0 in case of error

Implemented in PosixSocket.

virtual int write	(	const void *	buf,
		size_t	size
	)

pure virtual

Method to write data to the socket.

Parameters

p	buf Pointer to the memory address containing data
size	Number of bytes that must be written

Returns: the number of bytes actually written; < 0 in case of error

Implemented in PosixSocket.

Member Data Documentation

protocol protocol_

protected

Protocol used by the socket.

This protocol is set during socket creation and cannot be changed.

Definition at line 131 of file abstract_system_socket.hpp.

The documentation for this class was generated from the following file:

/home/cloud/work/netcpp.doc/include/abstract_system_socket.hpp
