NetCpp: PosixSocket Class Reference

All Classes Namespaces Files Functions Variables Typedefs Enumerations Macros Pages

Class for platform-dependent code. More...

#include <posix_socket.hpp>

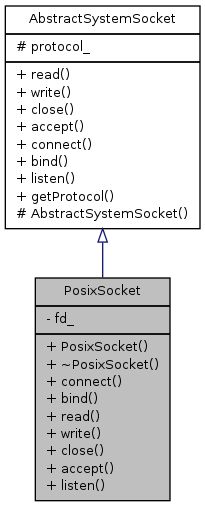

Inheritance diagram for PosixSocket:

Public Member Functions
	PosixSocket (const protocol &prot)
	Constructor.
virtual	~PosixSocket ()
	Destructor.
virtual void	connect (const Address &addr)
	Method to connect() the socket to an address.
virtual void	bind (const Address &addr)
	Method to bind() the socket to an address.
virtual int	read (void *buffer, size_t size)
	Low-level read.
virtual int	write (const void *buffer, size_t size)
	Low-level write.
virtual bool	close ()
	Method to close the socket.
virtual void	accept (AbstractSystemSocket *sock)
	Method to accept() a connection on the socket.
virtual void	listen (int maxPendingConnections)
	Listen operation.
Public Member Functions inherited from AbstractSystemSocket
protocol	getProtocol () const
	Method to get the socket protocol.

Private Attributes
int	fd_
	Number of the file descriptor.

Additional Inherited Members
Protected Member Functions inherited from AbstractSystemSocket
	AbstractSystemSocket (const protocol &prot)
	Constructor.
Protected Attributes inherited from AbstractSystemSocket
protocol	protocol_
	Protocol used by the socket.

Detailed Description

Class for platform-dependent code.

This is the class containing the code for Posix platforms.

Definition at line 45 of file posix_socket.hpp.

Constructor & Destructor Documentation

PosixSocket ( const protocol & prot )

Constructor.

The concrete class constructed depends on the specific protocol.

Parameters

prot	protocol used by the socket

Exceptions

runtime_error in case of unknown protocol

Definition at line 54 of file posix_socket.cpp.

                                            :
                AbstractSystemSocket(prot)
{
        if (prot == protocol(STREAM, LOCAL))
                fd_ = socket(AF_LOCAL, SOCK_STREAM, 0);
        else if (prot == protocol(DGRAM, LOCAL))
                fd_ = socket(AF_LOCAL, SOCK_DGRAM, 0);
        else if (prot == protocol(STREAM, IPv4))
                fd_ = socket(AF_INET, SOCK_STREAM, 0);
        else if (prot == protocol(DGRAM, IPv4))
                fd_ = socket(AF_INET, SOCK_DGRAM, 0);
        else {
                ERROR("Error: protocol unkown");
                throw std::runtime_error ("Protocol unknown");
        }
        if (fd_ < 0) {
                ERROR("Error when creating socket");
                throw std::runtime_error ("Socket error");
        }

}

~PosixSocket ( )

virtual

Destructor.

It just calls close()

Definition at line 80 of file posix_socket.cpp.

{
        close();
}

Here is the call graph for this function:

Member Function Documentation

void accept ( AbstractSystemSocket * sock )

virtual

Method to accept() a connection on the socket.

This method calls accept(). This method is usually invoked on the server-side for stream communications.

Parameters

sock	Socket on which the new connection must be accepted.

Exceptions

runtime_error in case of error in accept()

Implements AbstractSystemSocket.

Definition at line 130 of file posix_socket.cpp.

{
        if ((sock->getProtocol() != getProtocol()) || (getProtocol().getType() != net::STREAM)) {
                ERROR("Accept not available!");
                throw std::runtime_error("Accept not available");
        }
        fd_ = ::accept((dynamic_cast<PosixSocket*> (sock))->fd_, NULL, 0);
        if (fd_ < 0) {
                ERROR("Error in accept()!");
                throw std::runtime_error("Accept error");
        }
}

Here is the call graph for this function:

void bind ( const Address & addr )

virtual

Method to bind() the socket to an address.

This method calls bind(). This method is usually invoked on the server-side.

Parameters

addr	Address which the socket must be bound to

Exceptions

runtime_error in case of error in bind()

Implements AbstractSystemSocket.

Definition at line 174 of file posix_socket.cpp.

{
        if (getProtocol().getDomain() == net::LOCAL) {
                DEBUG("Local protocol found");
                struct sockaddr_un serv_addr;
                bzero((char *) &serv_addr, sizeof(serv_addr));
                serv_addr.sun_family = AF_LOCAL;
                strncpy(serv_addr.sun_path, addr.getAddress().c_str(),
                    sizeof(serv_addr.sun_path) - 1);
                if (::bind(fd_, (struct sockaddr *) &serv_addr, sizeof(serv_addr)) == 0)
                        return;
        } else if (getProtocol().getDomain() == net::IPv4) {
                DEBUG("Network protocol found");
                struct sockaddr_in serv_addr;
                bzero((char *) &serv_addr, sizeof(serv_addr));
                serv_addr.sin_family = AF_INET;
                serv_addr.sin_port = htons((dynamic_cast<const ip4::tcp::address*>(&addr))->getPort());
                serv_addr.sin_addr.s_addr = INADDR_ANY;
                if (::bind(fd_, (struct sockaddr *) &serv_addr, sizeof(serv_addr)) == 0)
                        return;
        } else {
                ERROR("Unknown protocol found");
        }
error:
        ::close(fd_);
        ERROR("Error when binding socket");
        throw std::runtime_error ("Bind error");
}

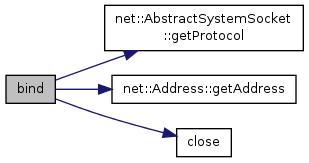

Here is the call graph for this function:

bool close ( )

virtual

Method to close the socket.

Returns: true in case of success; false otherwise

Implements AbstractSystemSocket.

Definition at line 118 of file posix_socket.cpp.

                       {
        return !(::close(fd_));
}

Here is the caller graph for this function:

void connect ( const Address & addr )

virtual

Method to connect() the socket to an address.

This method calls connect(). This method is usually invoked on the client-side.

Parameters

addr	Address which the socket must be connected to

Exceptions

runtime_error in case of error in connect()

Implements AbstractSystemSocket.

Definition at line 213 of file posix_socket.cpp.

{
        if (getProtocol().getDomain() == net::LOCAL) {
                struct sockaddr_un serv_addr;
                bzero((char *) &serv_addr, sizeof(serv_addr));
                serv_addr.sun_family = AF_LOCAL;
                strncpy(serv_addr.sun_path, addr.getAddress().c_str(), sizeof(serv_addr.sun_path) - 1);
                if (::connect(fd_, (struct sockaddr *) &serv_addr, sizeof(serv_addr)) == 0)
                        return;
        } else if (getProtocol().getDomain() == net::IPv4) {
                struct sockaddr_in serv_addr;
                bzero((char *) &serv_addr, sizeof(serv_addr));
                serv_addr.sin_family = AF_INET;
                serv_addr.sin_port = htons((dynamic_cast<const ip4::tcp::address*>(&addr))->getPort());
                struct in_addr add;
                inet_aton(addr.getAddress().c_str(), &add);
                bcopy(&add, &serv_addr.sin_addr.s_addr, sizeof(add));
                if (::connect(fd_, (struct sockaddr *) &serv_addr, sizeof(serv_addr)) == 0)
                        return;
        }
error:
        ::close(fd_);
        ERROR("Error when creating client socket");
        throw std::runtime_error ("Client socket error");
}

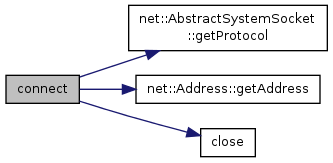

Here is the call graph for this function:

void listen ( int max_pending_connections )

virtual

Listen operation.

This method calls listen() and allows to specify the number of maximum allowed pending connections. This method is usually invoked on the server-side.

Parameters

max_pending_connections Number of maximum allowed pending connections.

Exceptions

runtime_error in case of error in listen()

Implements AbstractSystemSocket.

Definition at line 153 of file posix_socket.cpp.

{
        if (getProtocol().getType() != net::STREAM) {
                ERROR("Listen not available!");
                throw std::runtime_error("Listen not available");
        }
        if (::listen(fd_, max_pending_connections) < 0) {
                ::close(fd_);
                ERROR("Error when listening");
                throw std::runtime_error ("Listen error");
        }
}

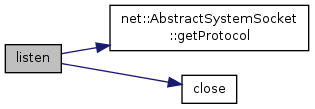

Here is the call graph for this function:

int read	(	void *	buffer,
		size_t	size
	)

virtual

Low-level read.

Parameters

buffer	Pointer to the buffer where read bytes must be stored
size	Number of bytes to be read

Returns: The number of actually read bytes or -1 in case of error

Implements AbstractSystemSocket.

Definition at line 93 of file posix_socket.cpp.

{
        return ::read(fd_, buffer , size);
}

int write	(	const void *	buffer,
		size_t	size
	)

virtual

Low-level write.

Parameters

buffer	Pointer to the buffer containing bytes to be written
size	Number of bytes to be written

Returns: The number of actually written bytes or -1 in case of error

Implements AbstractSystemSocket.

Definition at line 107 of file posix_socket.cpp.

{
        return ::write(fd_, buffer, size);
}

Member Data Documentation

int fd_

private

Number of the file descriptor.

This is the return value of open(), socket() or accept().

Definition at line 65 of file posix_socket.hpp.

The documentation for this class was generated from the following files:

/home/cloud/work/netcpp.doc/include/posix_socket.hpp
/home/cloud/work/netcpp.doc/src/posix_socket.cpp
